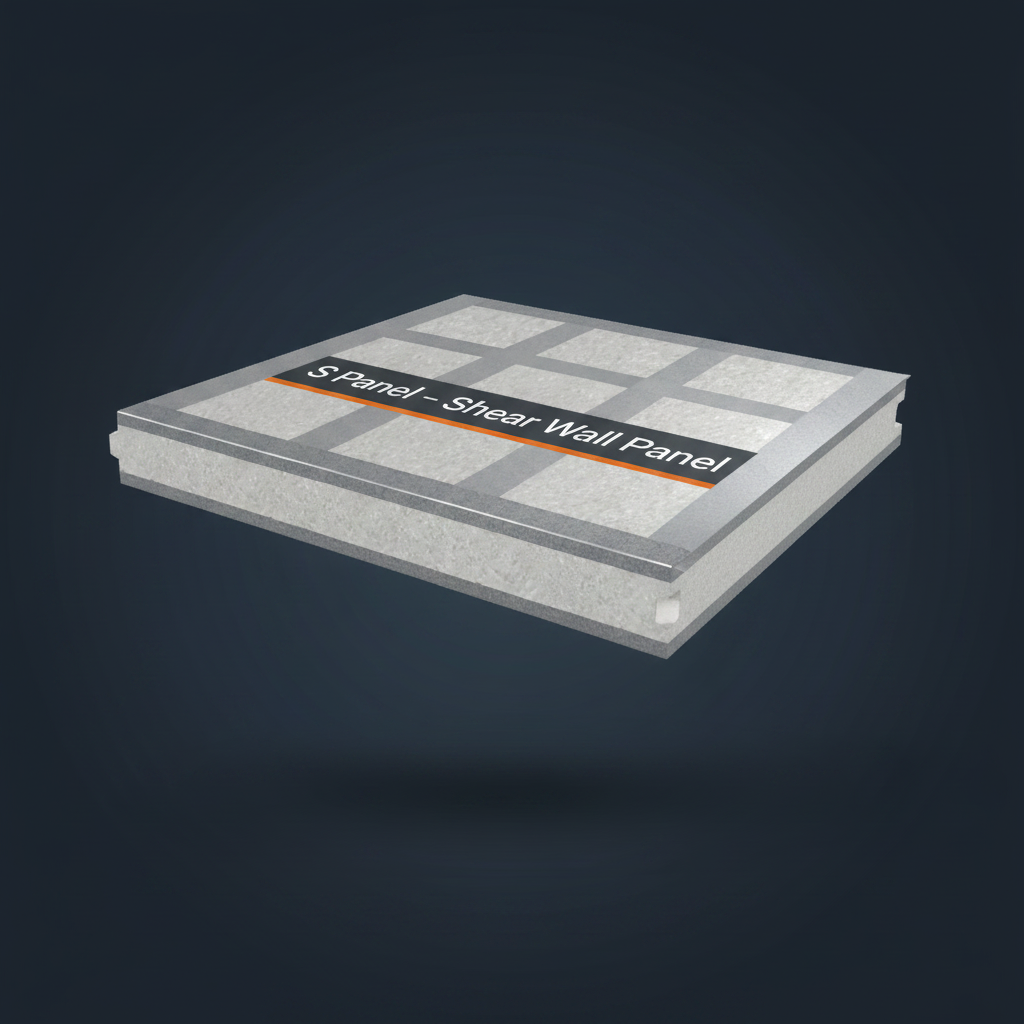

S Panel – Shear Wall Panel

Maximum Lateral Strength. Built-In Thermal Break.

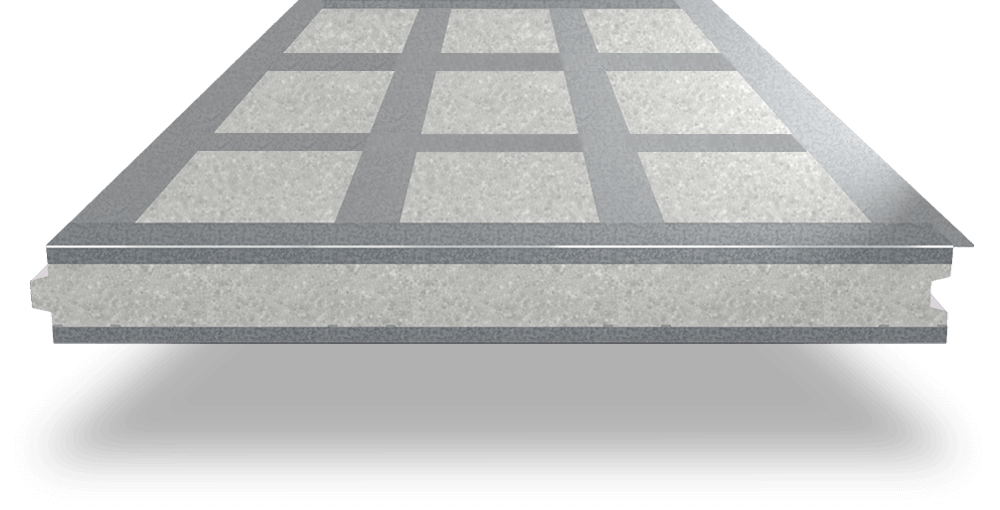

The S Panel is Therm Emporium's shear wall panel — engineered with a unique stud orientation that creates a thermal break while delivering exceptional lateral load resistance. Every panel is inherently a shear panel by design.

Panel Specifications

• Thickness: 5.5" or 7.5"
• Width: up to 4'
• Height: up to 12'
• Thermal Performance: R51 to R61
• Stud Configuration: 4 or 5 studs on both faces (16" or 12" o.c.)
• Lateral Load Capacity: up to 2,420 plf (2.0 safety factor)
• Three horizontal bracings for thermal break

Key Benefits

• Studs oriented sideways to create a full thermal break in the shear direction
• Up to 2,420 plf lateral load capacity with built-in safety factor
• Combines structural shear resistance with high thermal performance

Ideal For

• Lateral load-bearing wall systems
• Seismic and wind-resistant construction
• Commercial and residential shear walls

Pricing is project-based. Contact our team for a custom quote.
